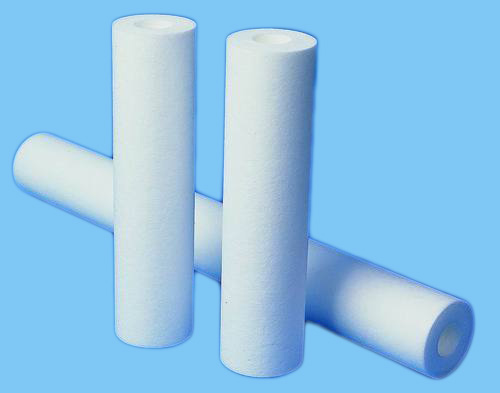

PP Spun Filter Cartridges
Thermally bonded polypropylene spun filter cartridge utilize graded density media that is well suited for clarification & pre filtration applications where high particle removal is essential. The all-propylene construction provides excellent thermal & chemical compatibility with high & low pH chemicals. Also the graded density design efficiently captures contaminants throughout the media matrix resulting in excellent contaminant holding capacity, increased lifetime & low pressure drop.
In water applications, polypropylene media does not impart taste, odor or colors into the solution. For industrial applications, polypropylene offers superior chemical resistance and is not prone to bacterial attack. The thermal bonding process of the media eliminates the need for a core collapse. This process also greatly reduces fiber migration.
Spun Bonded Cartridges can be used either as a pre-filter or final filter for industrial, chemical process, pharmaceutical, food/beverage, cosmetics, water and other applications. Spun cartridges are available in a wide range of lengths and micron sizes. Two sizes are available- standard and jumbo as per your flow rate and volume requirements.
FEATURES & BENEFITS:
High flow rates and low pressure drops
Wide chemical compatibility
Particles removed through the entire depth of filter cartridge.
Graded density structure for maximum dirt holding capacity
Supported core for overall strength
Thermal bonding process stops media migration
Contains no resin binders, solvent ,wetting or antistatic agents
PRODUCT SPECIFICATIONS
Micron Rating |
1, 5, 10, 20 µ |
Length |
10", 20", 30", 40” |
Inner Dia for standard size |
28 mm |
Outer Dia |
60-64 mm |
Max operating temperature |
80˚ C |
Max Differential Pressure |
3-4 bar (50 psi) @ 21˚C |
FEATURES & BENEFITS
Filter media: 100% Polypropylene fiber
Support media: Polypropylene fiber
Inner core: Polypropylene cage
CONFIGURATION
Double open end type (DOE Type)
Code 7S (226 ‘O’ Ring design/ Bayonet or fin)
CONFIGURATION
Pharmaceutical Industry
RO treatment of water
Color & Dyes Industry
Chemical Industry
Water Treatment Industry
Textile industry
Edible oils
Electronics
Cosmetics
