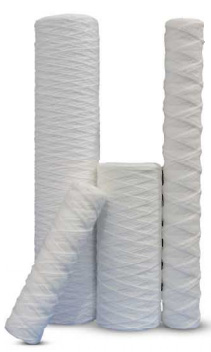

PP Wound filter cartridges
Wound Filter Cartridges are manufactured using a high speed, continuous wind process which creates a superior one-piece filter with hundreds of diamond shaped tunnels that get progressively smaller from the outer diameter to the core. Finer particles are progressively trapped as fluid travels to the centre of the filter allowing for much greater retention capacity than straight surface filter media of same dimensions & porosity.
The double O-ring sealing system ensures positive sealing of the filter cartridge within the housing and virtually eliminates and potential for bypass. The all polypropylene construction provides excellent chemical compatibility in a wide variety of process streams.
Wound Filter Cartridges are available in a wide range of lengths and micron sizes. Two sizes are available- Standard and Jumbo as per your flow rate and volume requirements.
FEATURES & BENEFITS OF WOUND FILTER CARTRIDGES
True Depth filtration
High Solids holding capacity
Wide chemical compatibility
A broad range of media and center core options provide excellent compatibility with a variety of fluids.
Removal ratings from 1 to 20μm
High efficiency but low in price for equipment installation & cost saving
Fits into most standard housings
Graded pore structure for efficient removal of a wide range of particle size
PRODUCT SPECIFICATIONS OF WOUND FILTER CARTRIDGES
Micron Rating |
1, 5, 10, 20 µ |
Length |
10", 20", 30", 40" |
Inner Dia-Standard size |
28 mm |
Outer Dia-Standard size |
60-62 mm |
Effective Surface area per 10" cartridge element |
3.5 sq. feet |
CONSTRUCTION OF WOUND FILTER CARTRIDGES
Filter media: 100% Polypropylene fiber / Microglassfiber/ Cotton
Support media: Polypropylene fiber
Inner core: Polypropylene cage/ Stainless steel for cotton wound
End Caps: Polypropylene if code 7 type
‘O’ Rings: Silicone/ EPDM/ Viton
CONFIGURATION OF WOUND FILTER CARTRIDGES
Double open end type (DOE Type)
Code 7S (226 ‘O’ Ring design/ Bayonet or fin)
CONFIGURATION OF WOUND FILTER CARTRIDGES
Double open end type (DOE Type)
Code 7S (226 ‘O’ Ring design/ Bayonet or fin)
APPLICATIONS OF WOUND FILTER CARTRIDGES
Organic Acids, Alkalis, Solvents
Chemical industriesChemical industries
Food & Beverage
Electronic Industry
Potable liquids, oils
Fishing industry
Cosmetic industry
Solar heating system
Petrochemical industry
Water based solutions
Reverse osmosis pre treatment
