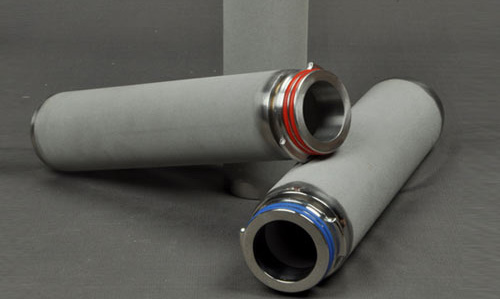

SS Sintered / Multilayer Filter Cartridges
Stainless Steel sintered powder filter cartridges are recommended for the filtration of air or liquid at higher operating temperatures & corrosive environment. Sintered S.S. cartridges are produced by cold isostatic pressing, which gives high porosity to the material and also stability. They can easily be cleaned or back washed thus having longer shelf life. Sintered filters are able to withstand high differential pressure across the filters.
FEATURES & BENEFITS:
High mechanical strength & good integrity
Good corrosion and thermal resistance
No possibility of media migration
Good permeability
Service life can be prolonged by cleaning and regenerating process
PRODUCT SPECIFICATIONS
Micron Rating |
0.5, 1, 3, 5, 10, 25 µ |
Length |
100 mm to 1000 mm or as per request |
Outer Dia |
63 mm, other dia available on request |
Inner Dia |
57 mm |
Wall thickness |
3 mm |
Max operating temp |
No constraint |
Sterilization |
121°C, 30 min, 10 times |
Effective surface area for sintered filter element |
Approx 1000 cm2 per standard 500 mm long cartridge |
CONSTRUCTION
Filter media: SS 316L
End Caps: SS 316/ SS 316L
‘O’ Ring/ Gaskets: Silicone/ EPDM/ Viton
CONFIGURATION
Double open end- DOE
Code 7S (226- double ‘O’ Ring / fin)
1” BSP threaded, other end closed
APPLICATIONS
Gas & liquid filtration
Solid catalyst recovery
Filtration of slurry oil
Filtration of petrochemical products
High temperature gas filtration
Vent applications
Chemical reagents
Fluidization
Sparging
